FRP Grating

Industrial facilities exposed to chemicals, moisture, or outdoor weathering commonly evaluate FRP grating when walking-surface requirements, maintenance planning, and environmental operating conditions influence material selection decisions. Different grating configurations are commonly assessed according to access requirements, loading conditions, and project-specific operating environments.

Grating selection commonly depends on access conditions, environmental exposure, and operational requirements associated with the intended installation environment.

Frequently Evaluated Considerations

Walking-surface configuration requirements
Drainage and fluid-management considerations
Open-area requirements
Slip-resistance considerations
Load-distribution characteristics
Access-frequency conditions

Quick Selection — FRP Grating

Application Scenario	Recommended Product Series	Key Consideration
Chemical processing environments	Molded Grating	Chemical exposure resistance, multidirectional load distribution
Extended-span walkways	Pultruded Grating	Load-path orientation, span-related considerations
Public-access walkways	Mini-Mesh Grating	Aperture configuration and pedestrian-access requirements
Containment areas	Covered Grating	Surface configuration and spill-management considerations
Vehicle-access areas	Heavy-Duty Grating	Load-performance evaluation requirements
Fire-sensitive environments	Phenolic Grating	Smoke-development and fire-performance considerations

Common Dimensional Parameters

Standard panel dimensions and mesh configurations commonly available for molded and pultruded grating systems are listed as reference parameters. Final selection should reference specific load-table data for the intended span and loading conditions.

Parameter	Commonly Available Specification	Typical Product Series
Panel Size (Standard Stock)	1220 mm × 3660 mm	Molded Grating / Mini-Mesh Grating
Panel Size (Secondary Stock)	1220 mm × 2440 mm	Molded Grating
Panel Size (Extended Length)	1000 mm × 4000 mm	Molded Grating / Pultruded Grating
Thickness — Light-Duty Pedestrian	25 mm	Mini-Mesh Grating
Thickness — Standard Pedestrian	30 mm	Molded Grating
Thickness — General Industrial	38 mm	Molded Grating / Phenolic Grating
Thickness — Heavy-Duty / Vehicle	50 mm	Heavy-Duty Grating
Mesh — Standard Square	38 mm × 38 mm	Molded Grating / Pultruded Grating
Mesh — Small Aperture	25 mm × 25 mm	Mini-Mesh Grating
Mesh — Large Aperture	50 mm × 50 mm	Molded Grating

Grating Product Categories

Different grating configurations are commonly evaluated according to operating environments, support arrangements, pedestrian or equipment access requirements, and installation conditions. The following product categories provide detailed information for individual grating systems and application-specific design considerations.

Fire‑rated phenolic FRP grating panel with the characteristic dark resin colour, produced by WayTong Building Materials

Phenolic FRP Grating — Fire-Rated Composite Panel System

Phenolic FRP grating uses a phenolic resin system instead of standard polyester or vinyl ester, giving it fire‑rated performance with low smoke emission and low toxicity—critical for enclosed spaces like tunnels, offshore accommodation modules, and subway ventilation shafts. In these occupied environments where fire performance is non‑negotiable, the material typically delivers enhanced safety margins where lifecycle cost consistently outweighs initial material investment.

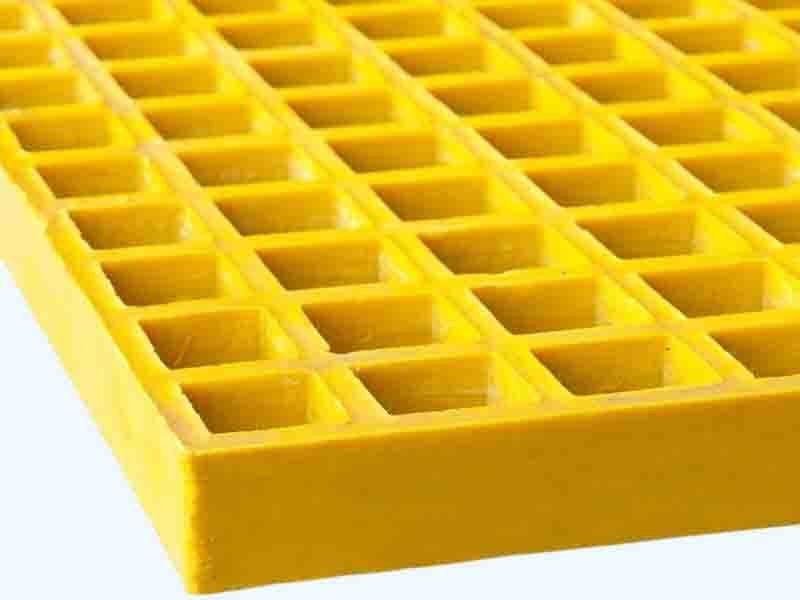

Heavy‑duty molded FRP grating with increased panel depth for vehicle loading, manufactured by WayTong Building Materials

FRP Heavy-Duty Grating — High-Capacity Molded Panel

Heavy‑duty FRP grating increases bearing bar depth to handle forklift traffic, truck loading zones, and heavy equipment access areas without the dead weight of equivalent steel grating. The deeper section typically maintains stiffness under concentrated wheel loads while keeping overall panel weight manageable for manual handling, delivering long‑term structural reliability in corrosive vehicle zones where lifecycle cost consistently outweighs initial material investment.

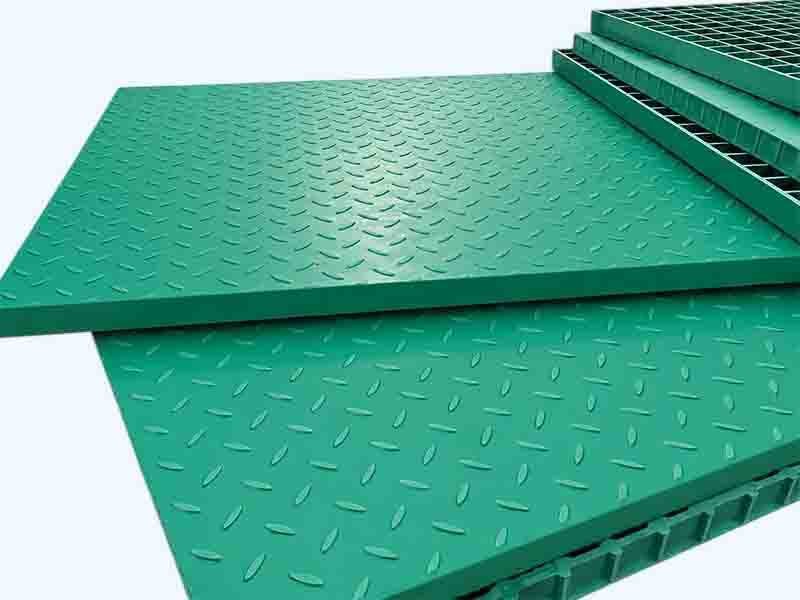

Covered FRP grating panel with integral solid top surface and square mesh underside from WayTong Building Materials

FRP Covered Grating — Solid Top Containment Panel

Covered FRP grating bonds a solid FRP top plate to a grating panel, creating a walking surface that contains spills and prevents debris from falling through. Food processing rooms, battery storage areas, and clean manufacturing spaces typically use this design to meet hygiene and containment requirements, supporting long‑term operational safety where lifecycle cost consistently outweighs initial material investment.

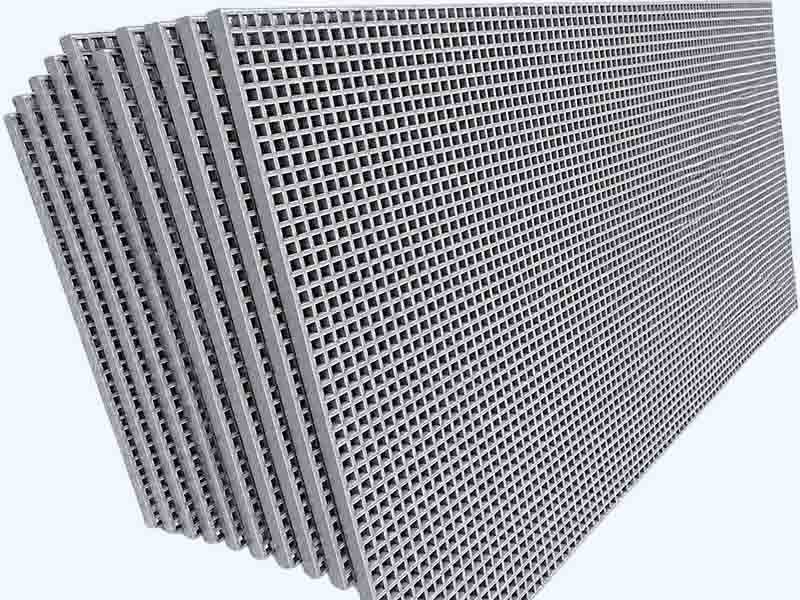

Mini‑mesh FRP grating panel with small aperture for pedestrian and trolley traffic at WayTong Building Materials

FRP Mini-Mesh Grating — Heel‑Proof Pedestrian Panel

Mini‑mesh FRP grating reduces the open area between bearing bars to create a heel‑proof, wheelchair‑accessible walking surface that still drains water and resists corrosion. Public pedestrian bridges, pier walkways, and amusement park platforms commonly specify this type for both safety compliance and extended service life, where lifecycle cost consistently outweighs initial material investment.

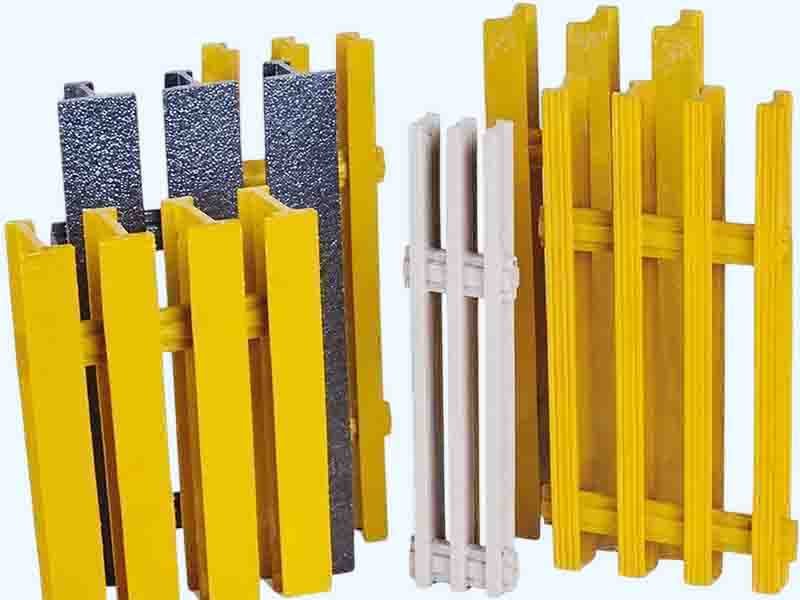

Pultruded FRP grating with open bar‑type construction and UV‑stabilised resin by WayTong Building Materials

FRP Pultruded Grating — High-Stiffness Span Panel

Pultruded FRP grating uses parallel, resin‑saturated glass fiber bundles pulled through a heated die to form high‑stiffness bearing bars. The unidirectional fiber alignment typically delivers superior span capability at lower weight, making it the preferred choice for long walkways and cable tray covers where dead load matters, and where lifecycle cost consistently outweighs initial material investment.

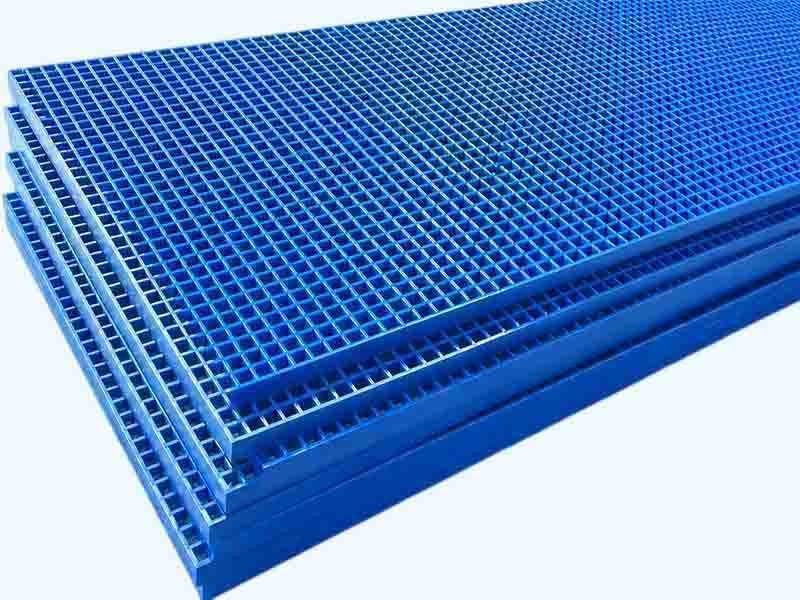

Molded FRP grating panel with square mesh pattern and grit‑top surface manufactured by WayTong Building Materials

Molded FRP Grating — Bidirectional Corrosion‑Resistant Panel

Molded FRP grating is formed by layering continuous glass fiber strands in a thermosetting resin matrix within a steel mold, creating a one‑piece panel with bidirectional load capacity. It is the workhorse grating for chemical plants, electroplating shops, and pickling lines where the chemical environment destroys metal grating within months. In these aggressive environments, molded FRP typically delivers extended service life with minimal maintenance, where lifecycle cost consistently outweighs initial material investment.
