FRP Structural Profiles

Industrial structures commonly evaluate FRP structural profiles when support configuration, installation constraints, and environmental operating conditions influence component selection decisions. Different profile geometries are commonly assessed according to structural layout requirements and project-specific design considerations.

Profile selection commonly depends on member configuration, connection requirements, and overall structural arrangement.

Frequently Evaluated Considerations

Structural-member geometry
Support configuration requirements
Connection-system layout
Load-path orientation
Assembly constraints
Project-specific fabrication requirements

Quick Selection — FRP Structural Profiles

Application Scenario	Recommended Product Series	Key Consideration
Primary support structures	FRP I Beam	Member orientation and support configuration
Platform framing	FRP Channel	Connection layout requirements
Secondary structural systems	FRP Angle	Corner and edge reinforcement considerations
Modular assemblies	FRP Square Tube	Closed-section geometry requirements
Architectural frameworks	FRP Rectangular Tube	Assembly and profile-layout considerations

Structural Profile Categories

Structural profile selection frequently depends on loading conditions, support arrangements, connection requirements, and project-specific design objectives. The following profile categories provide detailed information regarding individual structural configurations, available profile forms, and application-specific engineering considerations.

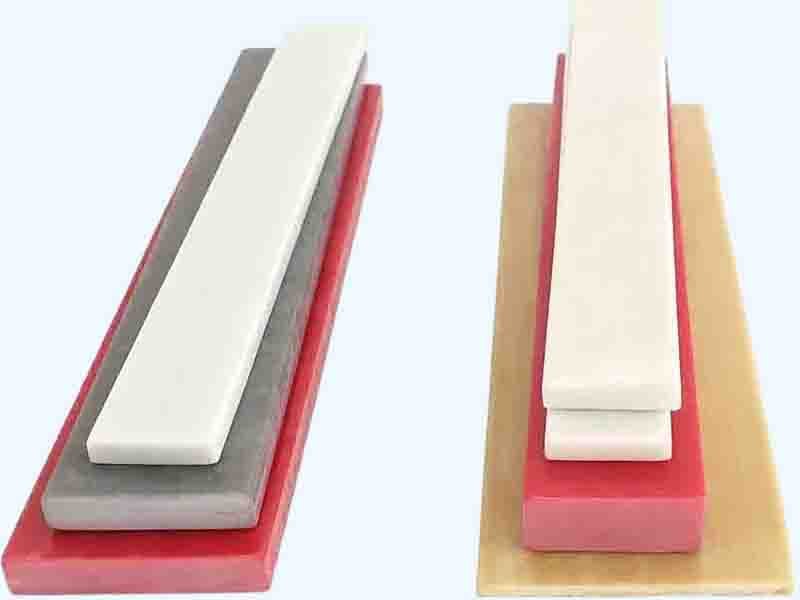

Pultruded FRP flat bar with rectangular cross‑section manufactured by WayTong Building Materials

FRP Flat Bar — Pultruded Composite Rectangular Profile

FRP flat bars provide a thin rectangular cross‑section that can be easily cut, drilled, and assembled on site for spacers, connection plates, or custom‑fabricated brackets. Pultruded FRP flat bars typically require no post‑installation coating and remain dimensionally stable in submerged or chemically exposed conditions, supporting long‑term structural reliability where lifecycle cost consistently outweighs initial material investment.

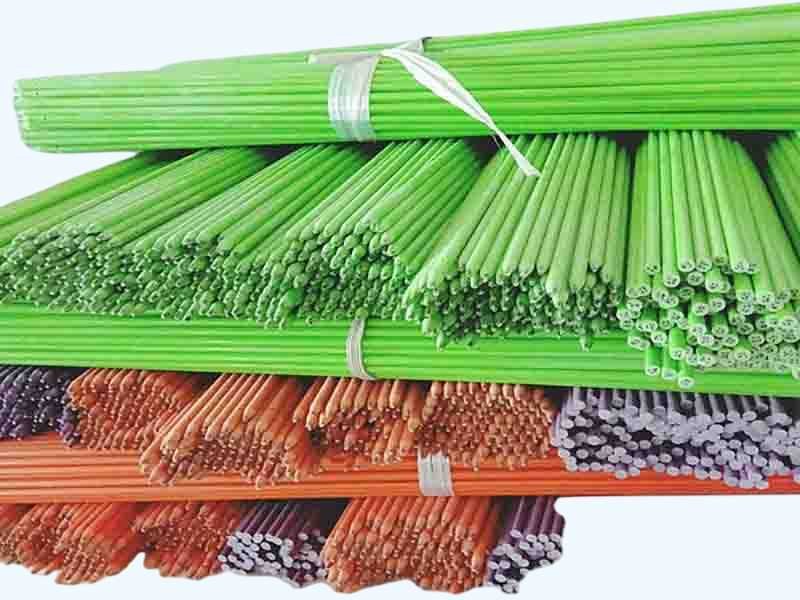

Pultruded FRP solid rod with smooth surface finish from WayTong Building Materials for mechanical fastening

FRP Solid Rod — Pultruded Unidirectional Composite Bar

FRP solid rods are unidirectional pultruded bars optimized for pure axial tension or compression applications, including tie rods, anchor bolts, and structural bracing. The high fiber-volume fraction typically maximizes longitudinal tensile strength while the composite matrix generally resists electrochemical corrosion, supporting long-term structural reliability in buried or submerged installations where lifecycle cost consistently outweighs initial material investment.

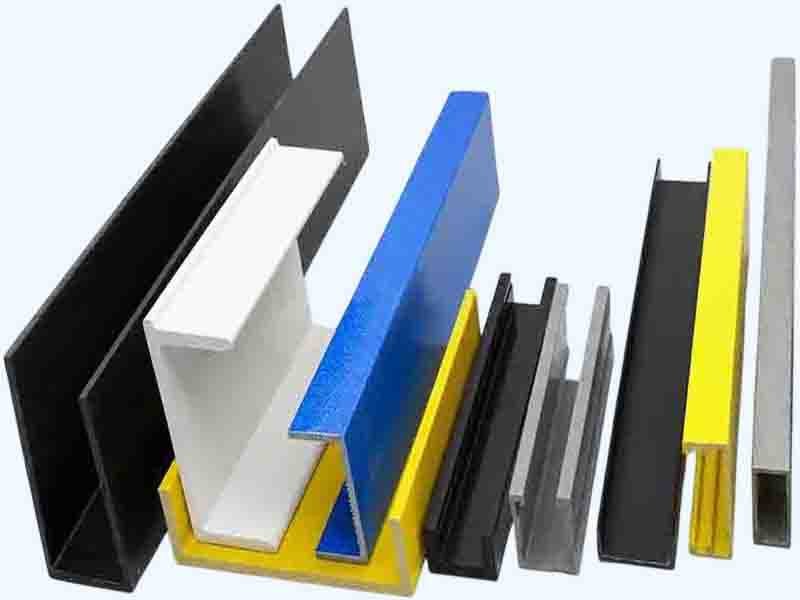

Pultruded FRP channel section with tapered flange manufactured by WayTong Building Materials

FRP Channel — Pultruded Composite Structural C-Section

FRP channels feature a single‑sided open cross‑section ideal for cable tray supports, guide rails, and secondary framing where access from one face is required. Pultruded FRP channels typically deliver comparable stiffness to steel at a fraction of the weight, and in corrosive industrial environments they eliminate the coating maintenance and section loss that steel channels experience, supporting long‑term structural service where lifecycle cost consistently outweighs initial material investment.

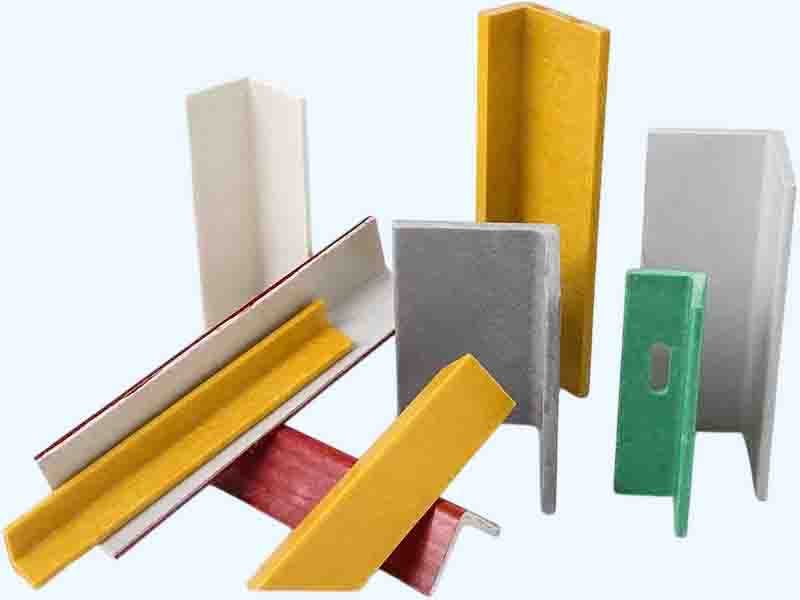

FRP Angle — Pultruded Composite L-Shaped Structural Profile

FRP angles are L‑shaped pultruded profiles used for light‑duty connections, edge protection, bracing, and equipment framing. Their simple geometry typically allows fast field cutting and drilling without hot work, cutting installation time in maintenance‑heavy environments like water treatment plants. In corrosive industrial settings, these non‑metallic angles generally deliver extended structural service where lifecycle cost consistently outweighs initial material investment.

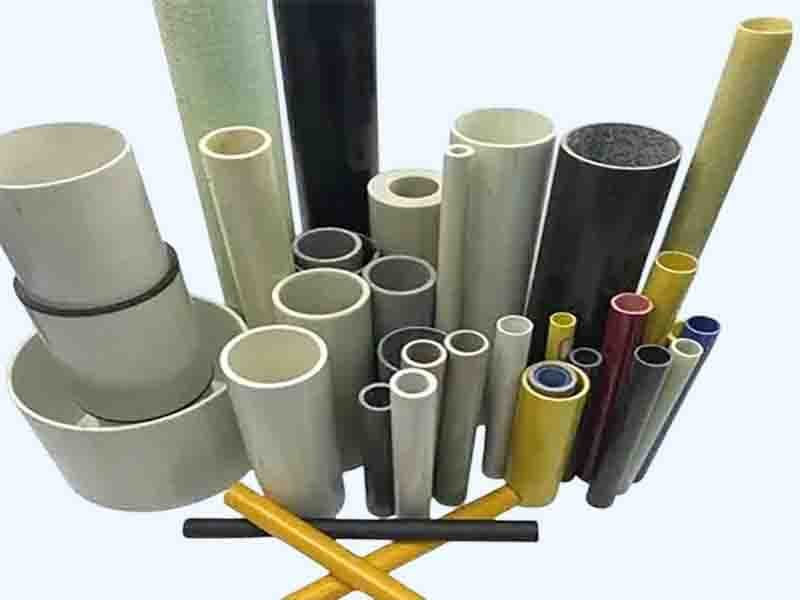

FRP Round Tube — Pultruded Composite Cylindrical Profile

FRP round tubes combine torsional stiffness with a clean cylindrical profile suited for handrails, circular railings, and fluid‑handling structural supports. The pultruded construction typically yields consistent wall thickness and diameter tolerances, making them a direct fit for infrastructure projects that need both durability and a neat finish, where lifecycle cost consistently outweighs initial material investment.

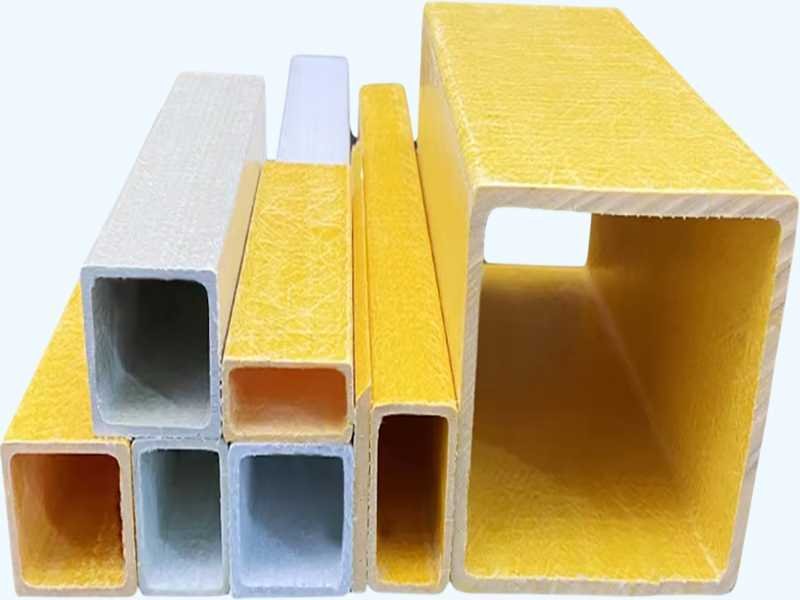

Pultruded FRP square hollow tube section with uniform wall thickness from WayTong Building Materials

FRP Square Tube — Pultruded Composite Hollow Structural Section

FRP square tubes offer balanced multi‑directional load capacity in a symmetrical cross‑section that simplifies connections and framing. Commonly used for guardrail posts, equipment stands, and structural columns in corrosive atmospheres, pultruded square tubes typically provide uniform stiffness without the maintenance burden of coated steel, delivering long‑term structural reliability where lifecycle cost consistently outweighs initial material investment.

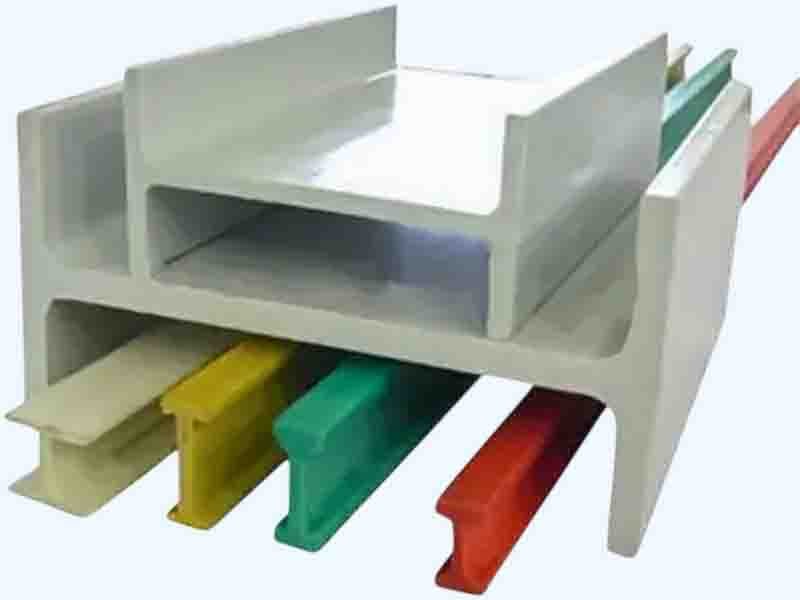

FRP I-Beam — Pultruded Composite Structural Member

FRP I‑beams are pultruded structural members designed for flexural load applications where corrosion resistance and a high strength‑to‑weight ratio matter. Available in standard flange widths and web depths, they serve as primary load‑bearing elements in chemical plant framing, pedestrian bridges, and offshore platform support structures. In aggressive industrial environments, these composite beams typically deliver long‑term structural reliability where lifecycle cost consistently outweighs initial material investment.
