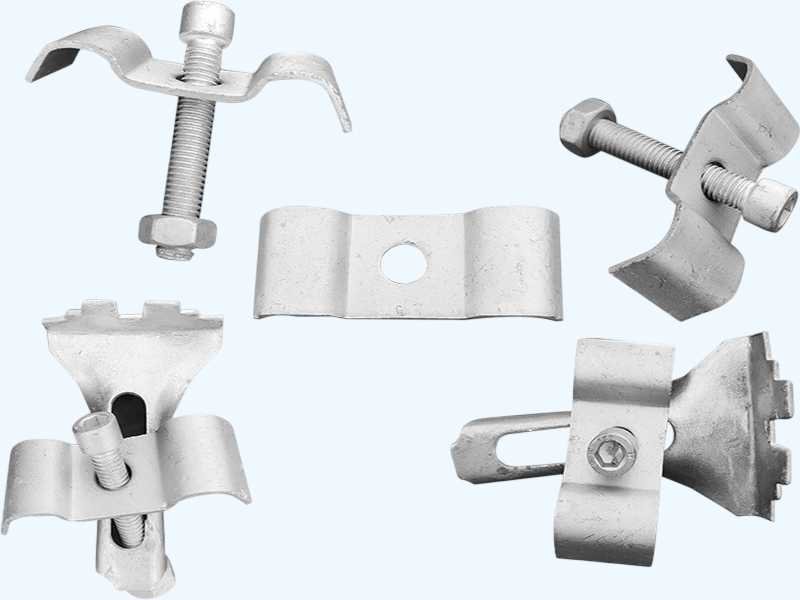

A galvanized grating fastener—commonly referred to as a grating clamp—is specified when the environment is dry, the budget is constrained, and the fastener count runs into the thousands. The hot-dip galvanizing process deposits a zinc layer typically ranging from 55–85 µm thick that metallurgically bonds to the carbon steel substrate. This coating provides sacrificial protection for the underlying steel in standard indoor industrial settings.
Mechanically, these steel grating hardware clamps follow the same saddle design as their stainless counterparts. The saddle spans the intersection of two bearing bars, and two M8 or M10 bolts draw it down, transferring the clamping load through the clip body. Installation torque typically ranges from 15–25 N·m, and the connection is fully demountable for panel removal during maintenance turnarounds. The saddle thickness typically ranges from 2.5–3.0 mm, providing a bearing surface that resists deformation under standard installation torque. For indoor process buildings, vehicle assembly areas, and covered loading docks, the galvanized clip secures the grating without the premium attached to stainless alloys.
These fasteners are generally suitable for ISO 12944 corrosion classes C1–C2. Each clamp is supplied as a complete set with saddle, two bolts, flat washers, and lock washers. Packaging is labelled by batch for traceability. For outdoor or chemically exposed installations, stainless or FRP alternatives may provide extended service intervals.
Proven in Field
"We used hot-dip galvanized clamps across the entire warehouse mezzanine grating—over 4,000 fasteners in total. Five years in a dry, heated indoor environment, and the clamps show zero corrosion. The cost saving compared to stainless covered the grating for the adjacent platform."
— Chemical Plant Walkway Case Study
Review Fastener Specifications & Material Data
WayTong supplies hot-dip galvanized grating clips as complete fastener sets for molded and pultruded panels in standard grating depths from 25 mm to 50 mm. Contact our technical desk for batch traceability documentation and project-specific material recommendations.
Request Product InformationThese fasteners integrate into the WayTong Accessories & Hardware family alongside stainless steel clips. For complete mechanical performance data, see the ASTM Standards Summary.
